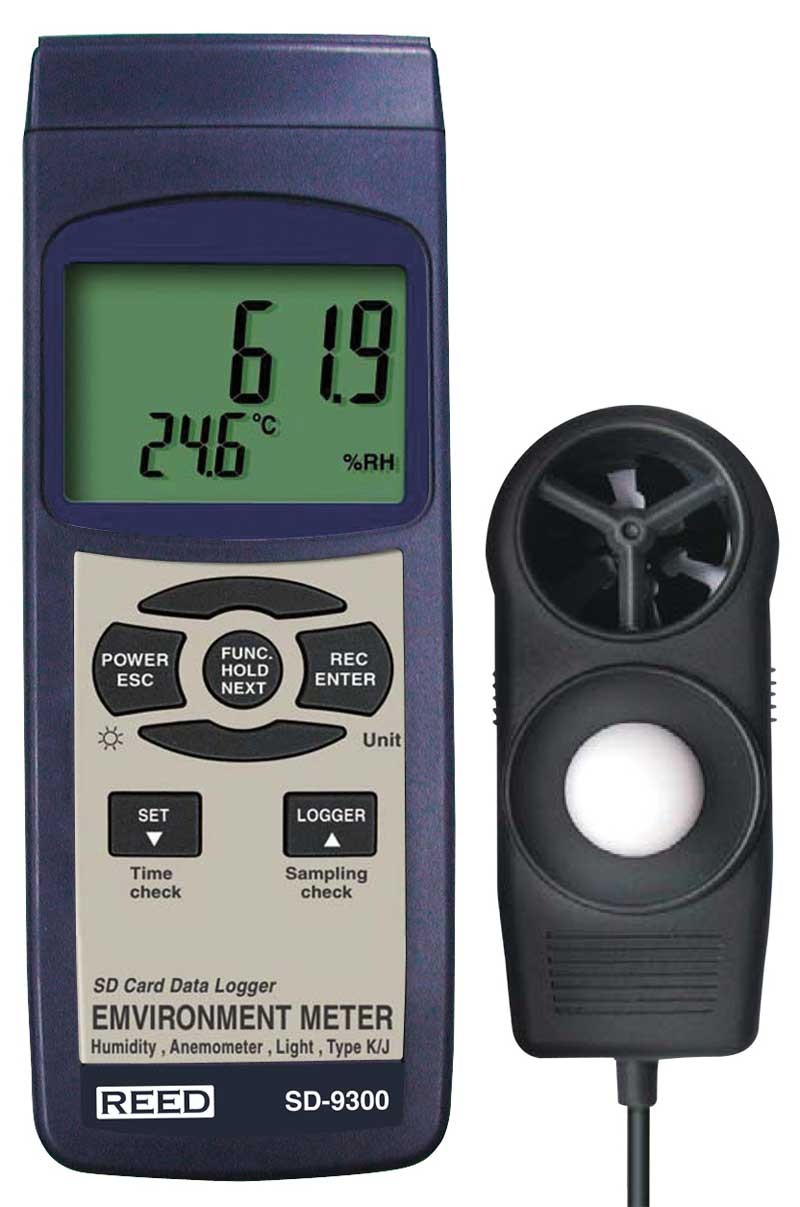

REED SD-9300 Data Logging Environmental Meter

Model: SD-9300

REED SD-9300 Data Logging Environmental Meter-


Downloads: manual datasheet
Ask an Expert Find This Product Near You


Real-time data logger with integrated SD memory card (optional) measures/records velocity and temperature, ambient and contact temperatures, relative humidity, and light levels.

REED SD-9300 Offers

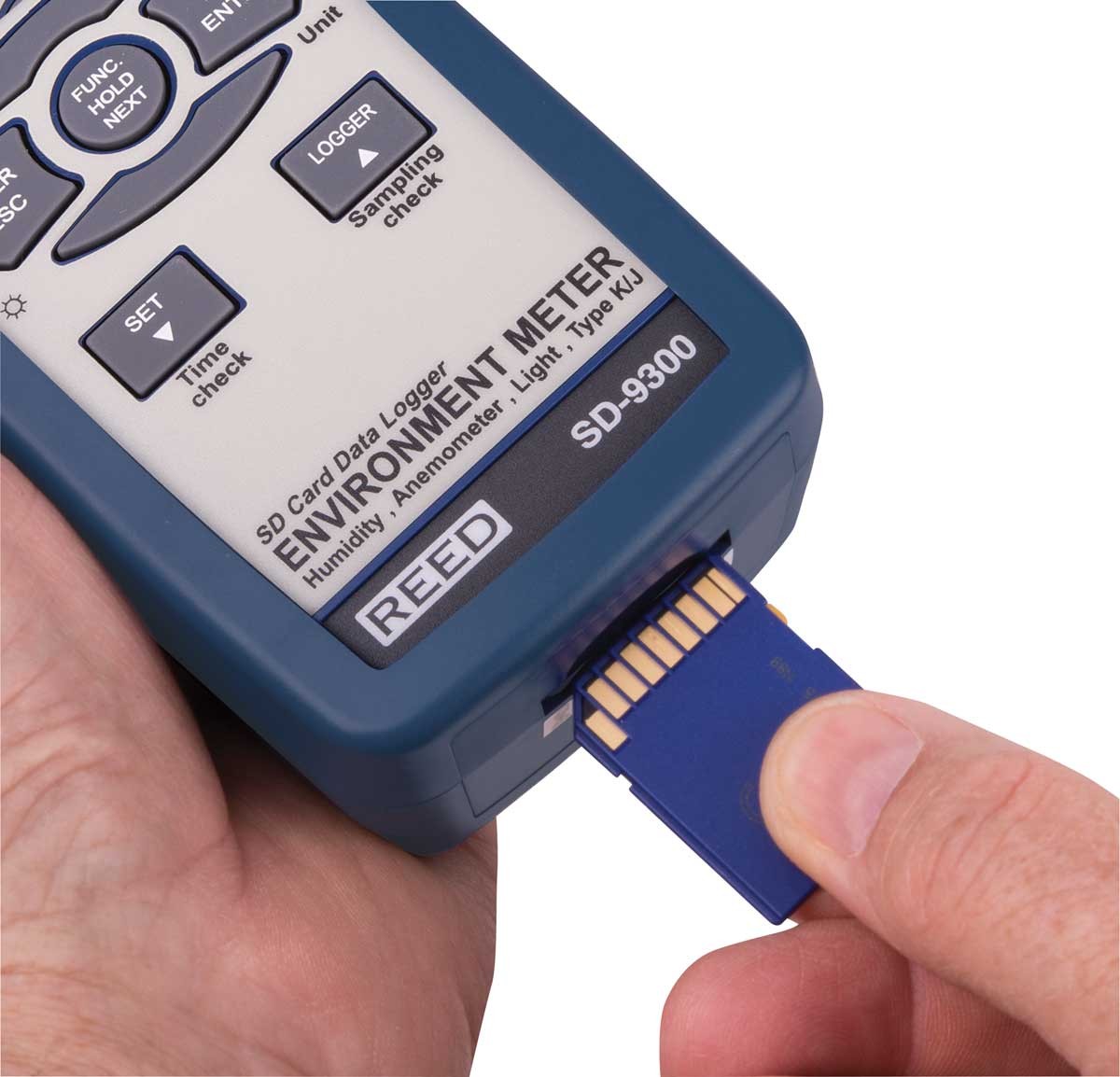

This 7-in-1 environmental meter measures air velocity, air temperature, ambient temperature, relative humidity, light and contact temperature measurements. The SD-9300 is also capable of sound level measurements with the SL-417 adapter (optional). Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

  • Measures air velocity/temperature, ambient temperature, relative humidity, light, and contact temperature
  • Measures sound level (dB) with SL-417 (sold seperately)
  • Air velocity is measured in m/s, ft/min, km/h, mph or knots
  • Light levels are measured in foot-candles or lux
  • Temperature is measured in °C or °F
  • Data hold and Max/Min functions
  • Real-time datalogger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Large, easy-to-read backlit LCD display
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

REED SD-9300 Specifications

Air Velocity
Measuring Ranges 0.4 to 30.0 m/s
1.4 to 128.0 km/h
0.9 to 78.3 mph
79 to 6890 fpm
0.8 to 68.0 knots
Accuracy ±2% + 0.2 m/s (0.8 km/h; 0.4 mph; 40 fpm; 0.4 knot)
Resolution 0.1 m/s, km/h, mph, knot
1 fpm
Temperature
Measuring Ranges Air Temperature: 32 to 122.0°F (0 to 50°C)
Contact Temperature:
Type K: -148 to 2372°F (-100 to 1300°C)
Type J: -148 to 2192°F (-100 to 1200°C)
Accuracy Air Temperature: ±0.8°C (±1.5°F)
Contact Temperature: ±(0.4% +1°F(0.5°C))
Resolution 0.1°F/°C
Humidity
Measuring Range 5 - 95% RH
Accuracy >70%RH: ±(3% rdg + 1%RH)
<70%RH: ±3%RH
Resolution 0.1% RH
Light
Measuring Ranges 0 - 20,000 Lux (0 to 1,860 Ft-cd)
Accuracy ±(5% rdg ± 8 dgt)
Resolution 1 Lux / 0.1 Ft-cd
Sound (Optional, SL-417 Adapter Sold Separately)
Measuring Ranges 30 - 80dB
50 - 100dB
80 - 130dB
Accuracy Basic Accuracy of ±3.5dB
Resolution 1 dB
General Specifications
Response Time 1 sec
Display 4-digit dual LCD
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Zero Adjustment Yes (for Light)
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 6 x AA batteries or AC Adapter (optional)
Output Yes
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN Software (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature 0 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-85%
Dimensions Instrument: 5.3 x 2.4 x 1.3" (135 x 60 x 33 mm)
Probe: 4.1 x 1.8 x 1.1" (105 x 46 x 29 mm)
Weight 1.1lb (515g)

What's included with the REED SD-9300

  • Environmental Datalogger
  • Multi-function Probe
  • Hard Carrying Case
  • Batteries

Ideal Applications for the REED SD-9300

  • Meteorological stations
  • Environmental Monitoring
