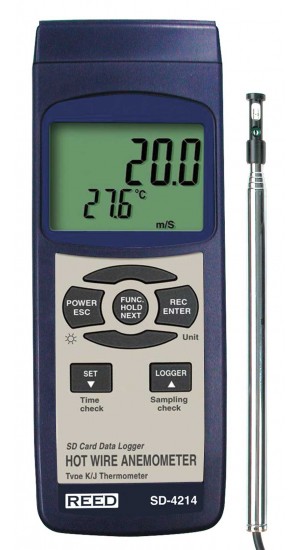

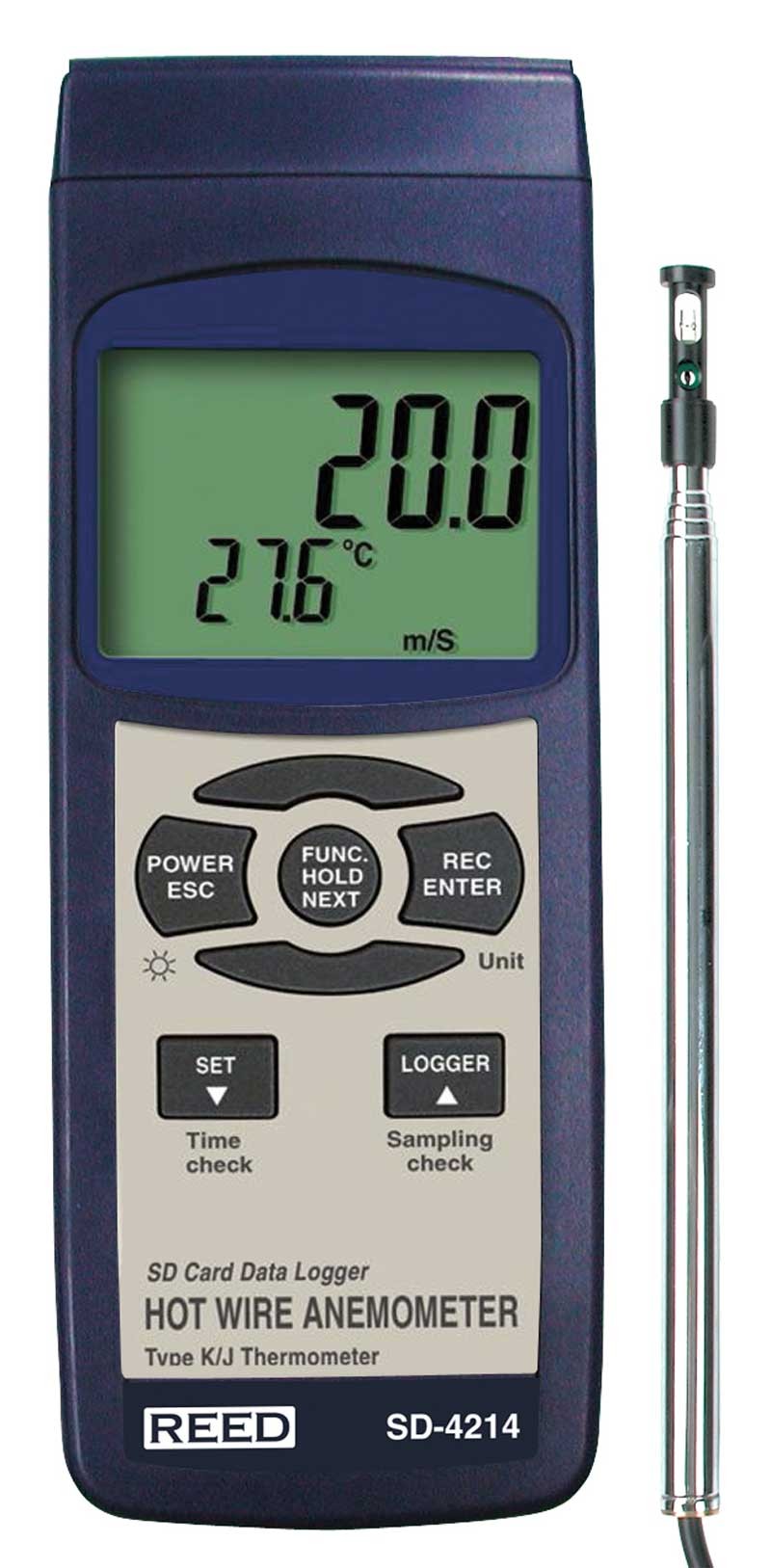

REED SD-4214 Hot Wire Thermo-Anemometer/Data Logger

Model: SD-4214

REED SD-4214 Hot Wire Thermo-Anemometer/Data Logger-


Downloads: manual datasheet
Ask an Expert Find This Product Near You


Measures air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input. Records measurements on an SD memory card without the need for software.

REED SD-4214 Offers

This SD series datalogging thermo-anemometer measures air velocity, air temperature and has a built-in contact thermometer. The SD-4214 features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

  • Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
  • Contact temperature measurement with type J/K thermocouple option
  • Thermistor sensor for fast air temperature readings

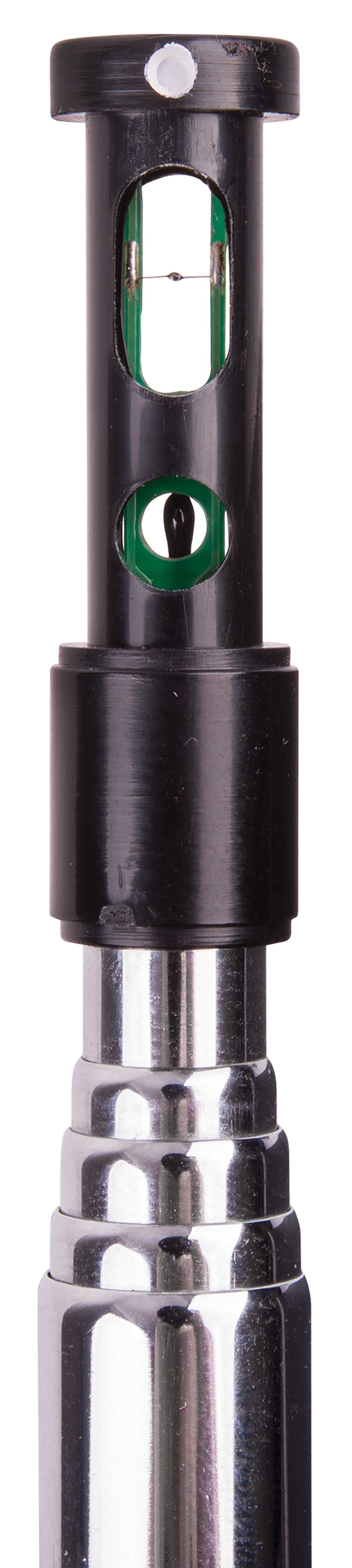

  • Hot wire probe for precise low air velocity measurements

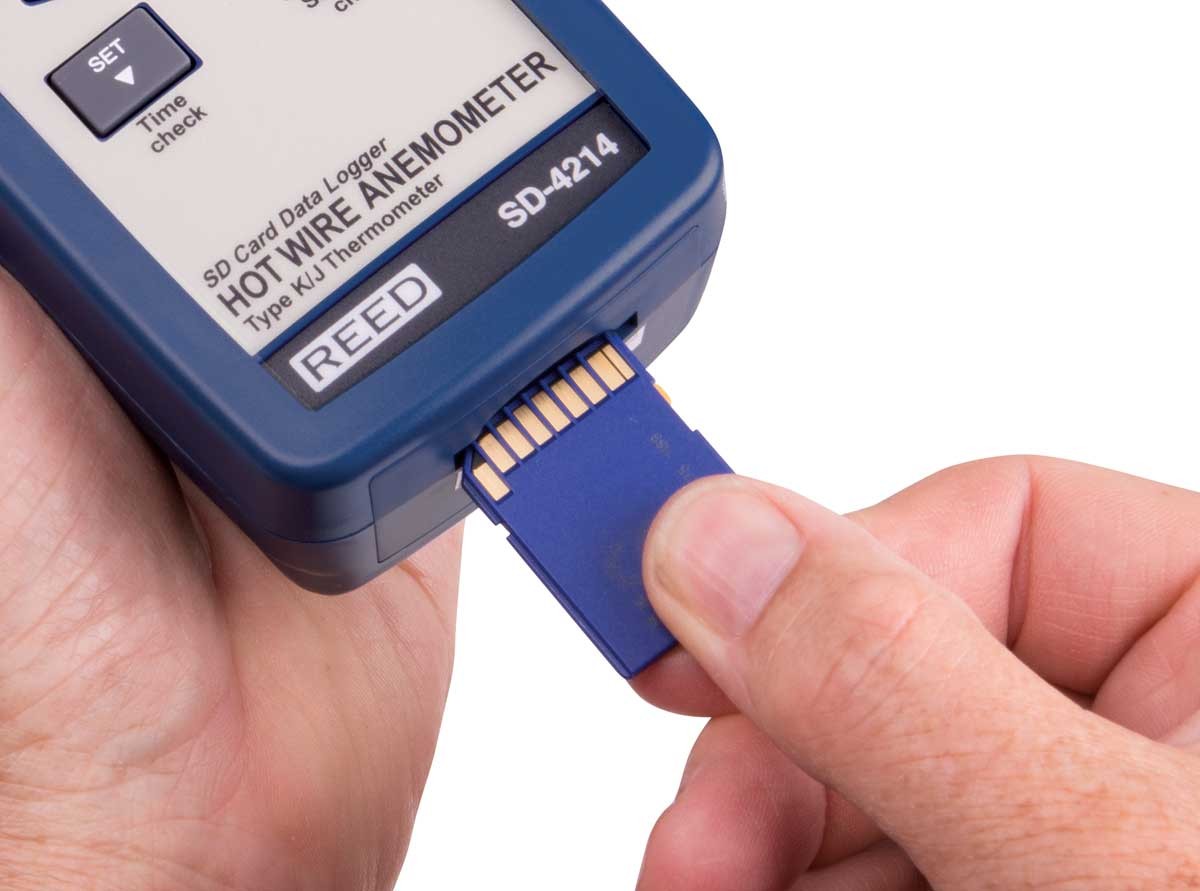

  • Real-time data logger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Large, easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Optional PC software features live tracking via USB connection
  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

REED SD-4214 Specifications

Type Hot Wire
Measuring Ranges fpm: 40 to 3940
m/s: 0.2 to 25
km/h: 0.7 to 72
mph: 0.5 to 44.7
knots: 0.4 to 38.8
Air Temperature: 32 to 122°F (0 to 50°C)
Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C)
Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C)
Accuracy Air Velocity: ±(2% rdg + 20 fpm, 0.2 m/s, 0.8 km/h, 0.4 mph, 0.4 knot)
Air Temperature: ±0.8°C (1.5°F)
Contact Temperature: ±(0.4% + 0.5°C (1°F))
Resolution fpm: 1
m/s, km/h, mph, knot: 0.1
Temperature: 0.1°F/°C
Telescope Probe Length 11 to 37" (280 to 940mm)
Response Time <1 sec.
Display 5-digit, Dual LCD Display
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 6 x AA batteries or AC Adapter (optional)
Output Yes (AC)
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN Software (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-80%
Dimensions 8 x 3 x 1.5" (203 x 76 x 38mm)
Weight 1.13lb (515g)

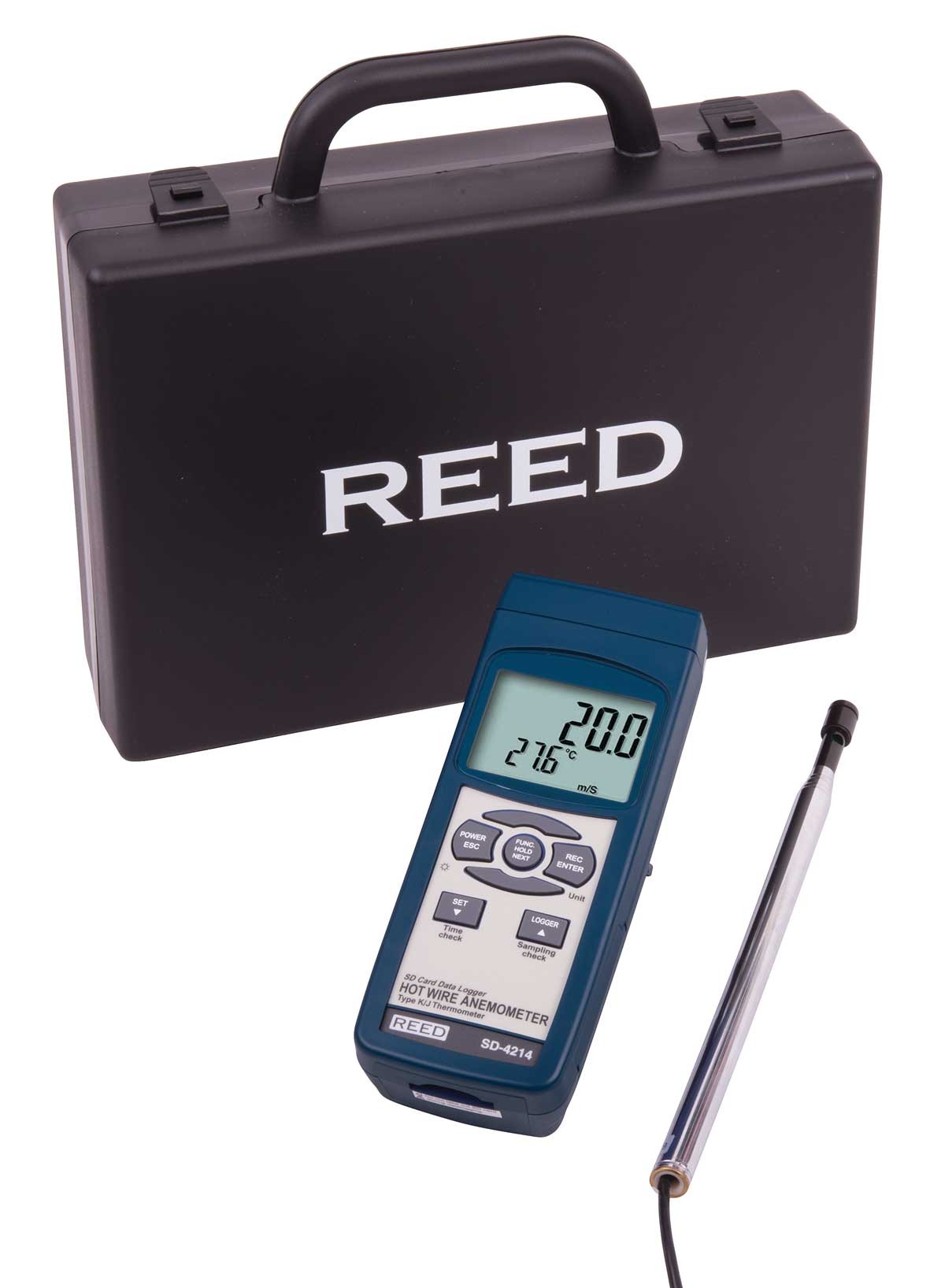

What's included with the REED SD-4214

  • Thermo-Anemometer Datalogger
  • Telescope Hot Wire Probe
  • Hard Carrying Case
  • Batteries

Ideal Applications for the REED SD-4214

  • HVAC/R and Refrigeration Servicing
  • Detecting Filter Blockage
  • Condensers and Chillers
