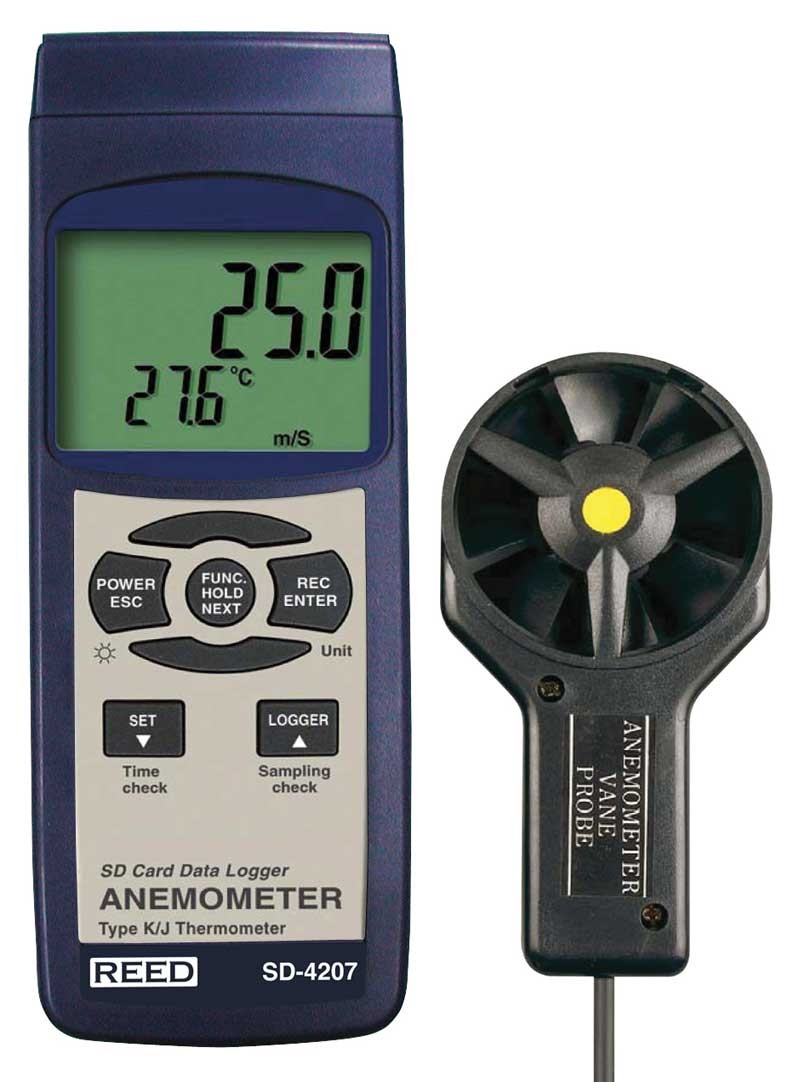

REED SD-4207 Data Logging Vane Thermo-Anemometer

Model: SD-4207

REED SD-4207 Data Logging Vane Thermo-Anemometer-


Downloads: manual datasheet
Ask an Expert Find This Product Near You


Real time data logger with integrated SD memory card (optional) measures/records air velocity, air temperature and contact temperature with an integrated Type J/Type K thermocouple input.

REED SD-4207 Offers

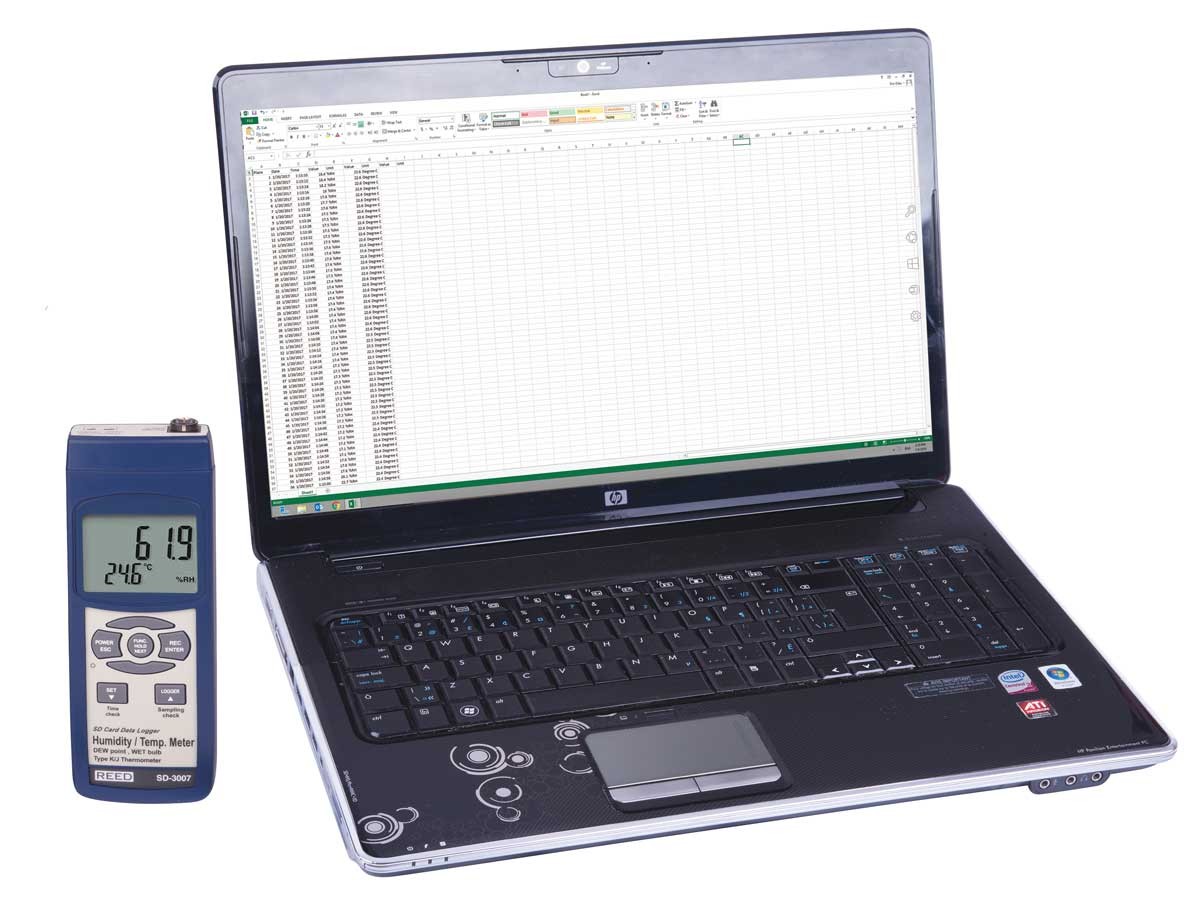

This SD series datalogging thermo-anemometer measures air velocity, air temperature and has a built-in contact thermometer. The SD-4207 features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

  • Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
  • Contact temperature measurement with type J/K thermocouple option
  • Thermistor sensor for fast air temperature readings
  • Low friction ball-bearing, rotating vane probe ensures high accuracy readings

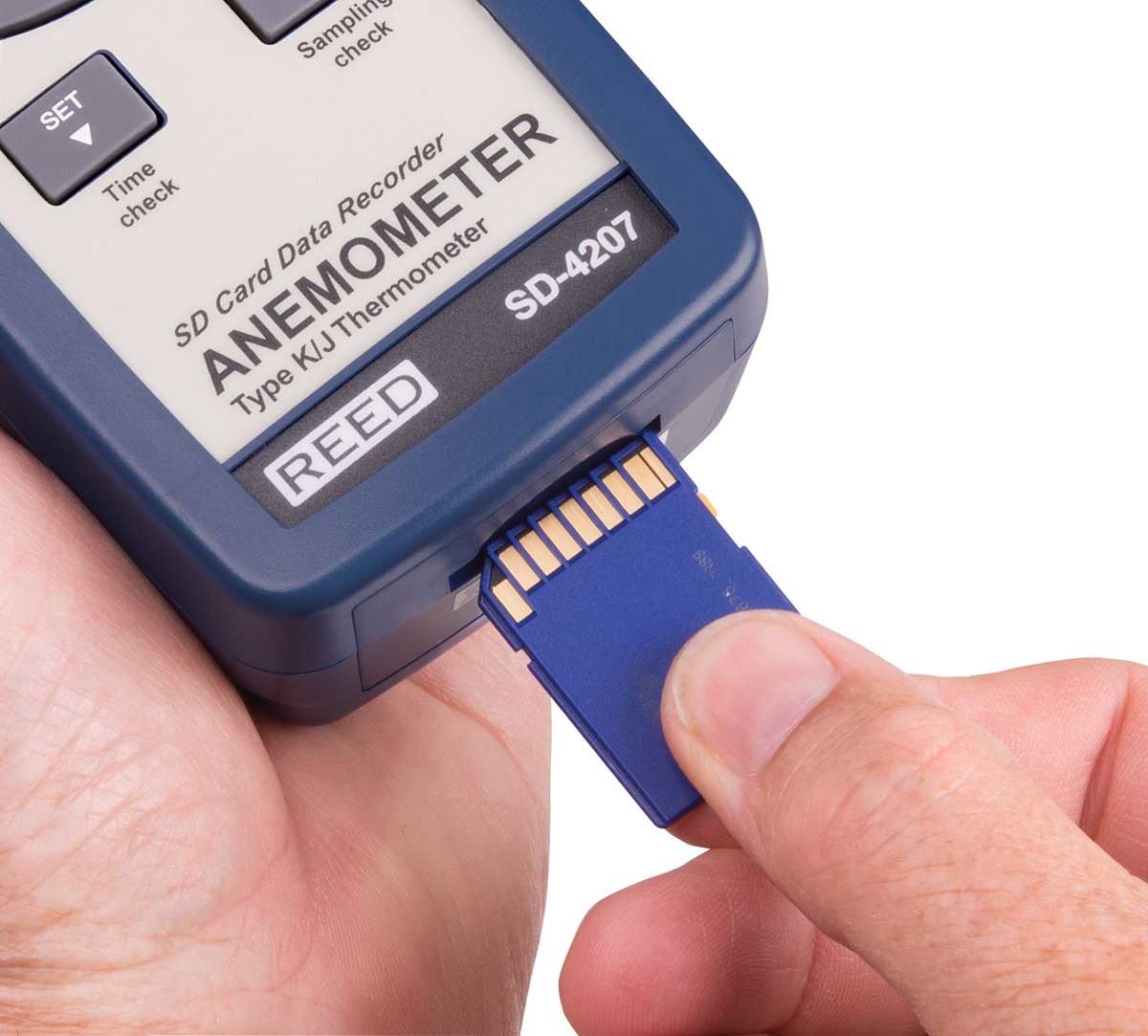

  • Real-time data logger with integral SD memory card
  • User selectable sampling rate from 1 to 3600 seconds
  • Easy-to-read backlit LCD display
  • Data hold and Min/Max functions
  • Optional PC software features live tracking via USB connection
  • Tripod mount on probe and instrument for long-term monitoring
  • Low battery indicator and auto shut off

REED SD-4207 Specifications

Type Vane
Measuring Ranges fpm: 79 to 6890
m/s: 0.4 to 30
km/h: 1.4 to 126
mph: 0.9 to 78.3
knots: 0.8 to 68 knots
Air Temperature: 32 to 122°F (0 to 50°C)
Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C)
Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C)
Accuracy Air Velocity: ±(2% rdg + 40 fpm, 0.2 m/s,  0.8 km/h, 0.4 mph, 0.4 knot)
Air Temperature: ±0.8°C (1.5°F)
Temperature: ±(0.4% + 0.5°C (1°F))
Resolution fpm: 1
m/s, km/h, mph, knot: 0.1
Temperature: 0.1°F/°C
Vane Diameter 2.8" (72mm)
Response Time <1 sec.
Display 5-digit, Dual LCD Display
Backlit Display Yes
Data Hold Yes
Min Yes
Max Yes
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Sampling Rate Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s)
External Memory Yes, expandable up to 16Gb with SD card (optional)
Auto Shut-off Yes (after 10 mins/off)
Kick Stand Yes
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 6 x AA batteries or AC Adapter (optional)
Output Yes (AC)
PC Connectivity USB Cable (optional)
Software   SW-U801-WIN Software (optional)
Software OS Compatibility Windows XP / Vista / 7
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-80%
Dimensions 8 x 3 x 1.5" (203 x 76 x 38mm)
Weight 1.13lb (515g)

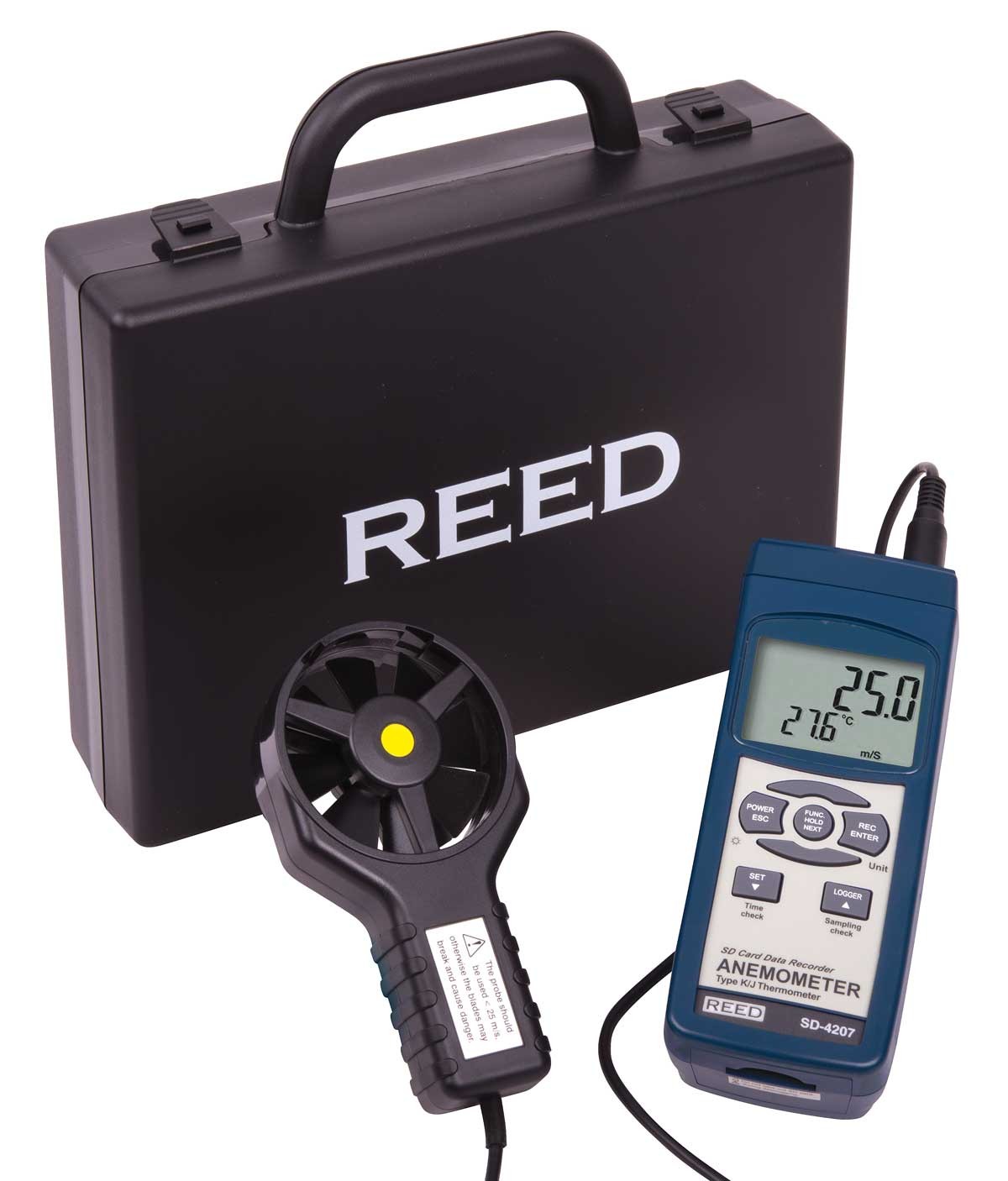

What's included with the REED SD-4207

  • Thermo-Anemometer Datalogger
  • Vane Probe
  • Hard Carrying Case
  • Batteries

Ideal Applications for the REED SD-4207

  • HVAC/R and Refrigeration Servicing
  • Detecting Filter Blockage
  • Condensers and Chillers
