REED SC-05 Sound Calibrator

Model: SC-05

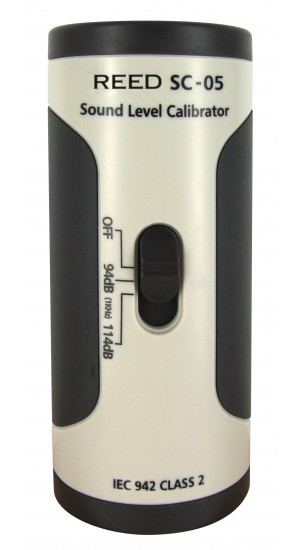

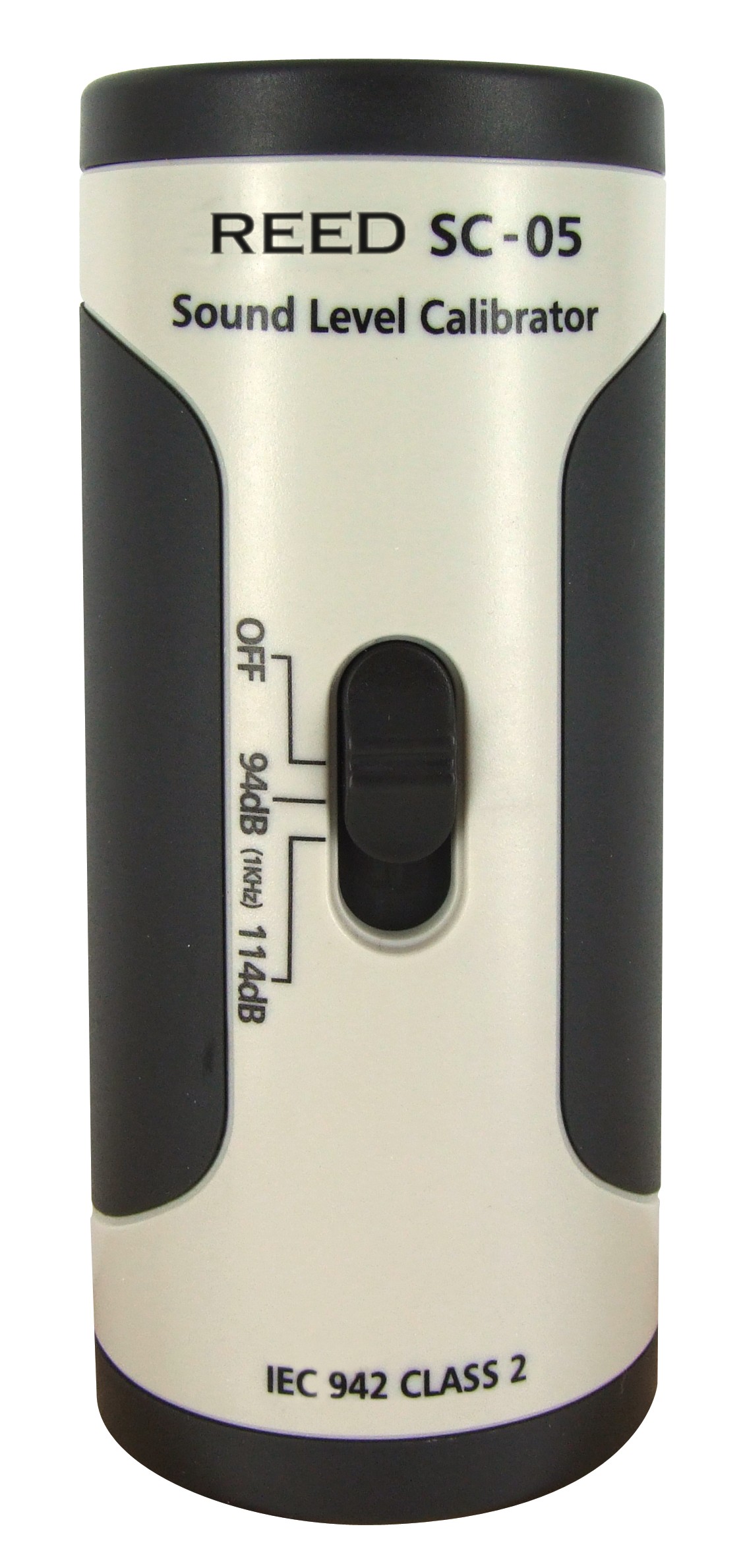

REED SC-05 Sound Calibrator-

Downloads: datasheet manual
Ask an Expert Find This Product Near You


This sound calibrator generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter.

Sorry! This product has been discontinued.


The REED SC-05 Sound Calibrator has been discontinued, it has been replaced by the REED R8090 Sound Level Calibrator

REED SC-05 Offers

Features

  • Generates a stable acoustic signal at a controlled frequency and amplitude to verify the accuracy of your sound level meter
  • Complies with IEC 942 Class 2
  • Output sound pressure levels of 94dB and 114dB
  • Accuracy of ±0.5dB
  • Output frequency of 1000Hz ±4%
  • Accommodates sound meters with 1/2" diameter microphones
  • Simply place calibrator on microphone, turn on and adjust your sound level meter
  • Operates on a single 9V battery (included)
  • Dimensions: 120 x 51 x 43mm
  • Weight: Approx. 130g

What's included with the REED SC-05

  • REED SC-05 Sound Calibrator
  • Calibration Lab
    When you purchase a REED product it comes included with a one year warranty. We back our products.
