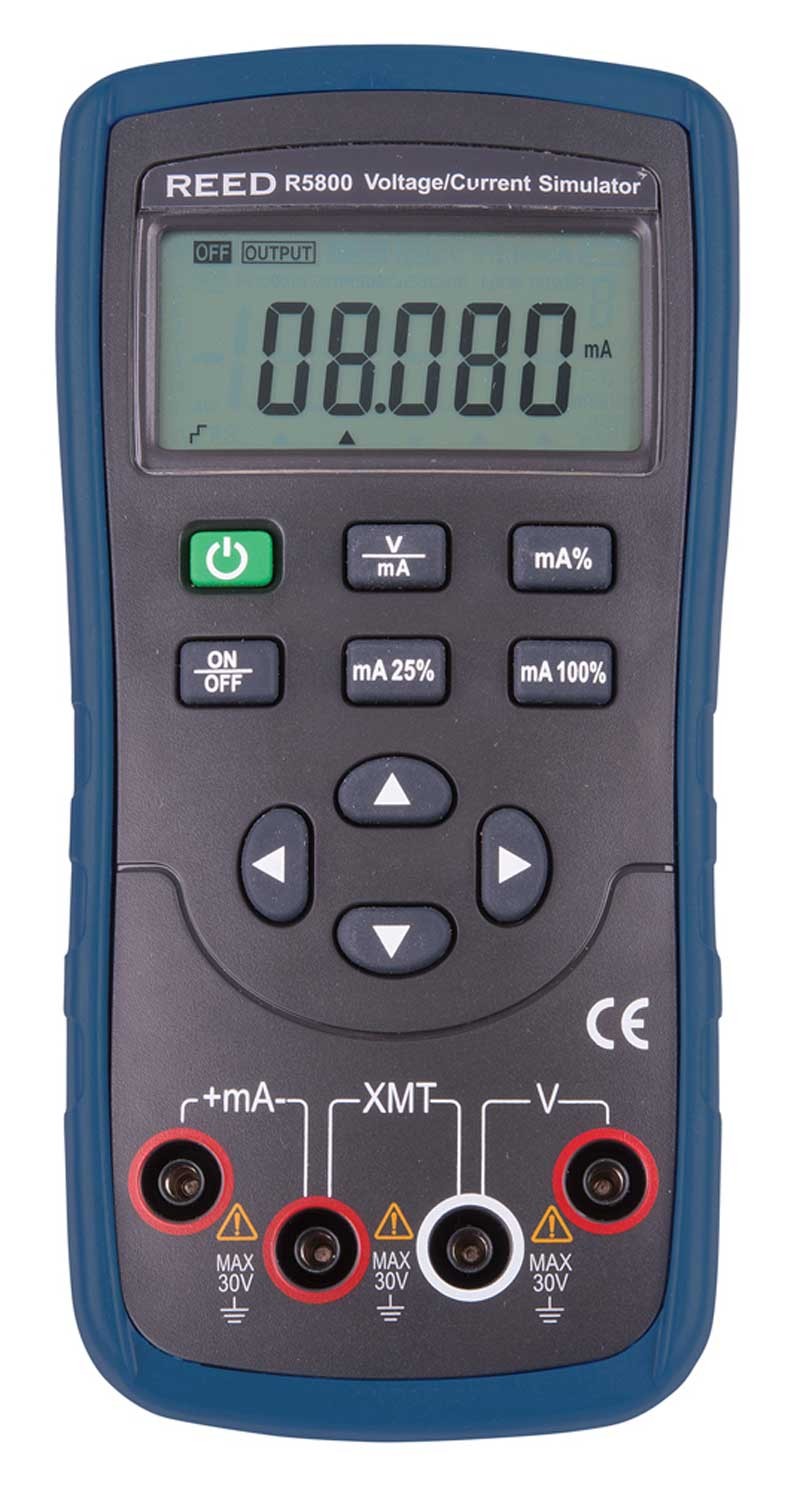

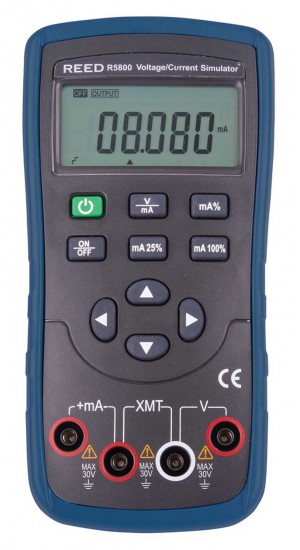

REED R5800 Voltage/Current Simulator, 10V/20mA

Model: R5800

REED R5800 Voltage/Current Simulator, 10V/20mA

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


This voltage/current simulator sources voltage and current and has a 5 digit LCD readout.

REED R5800 Offers

This voltage/current simulator is capable of sourcing voltage and current. The R5800 features a large easy-to-read 5-digit LCD display, protective boot and kickstand.

Features

  • Sources voltage and current
  • Large, 5-digit LCD display
  • Automatic calibration
  • Low battery indicator and auto shut off

REED R5800 Specifications

DC Voltage
Range 10V
Output Range 0.000 to 11.000V
Resolution 1mV
Accuracy ±0.05% of set  value ±2mV
DC Current
Range 20mA
Output Range 0.000 to 2.000mA
Resolution 0.001mA
Accuracy ±0.05% of set value ±4μA
Analog Transducer
Range -20mA
Output Range 0.000 to-22.000mA
Resolution 0.001mA
Accuracy ±0.05% of set value ±4μA
Loop Power
Range 24V
Accuracy ±10%
General Specifications
Display 5-Digit LCD
Kick Stand Yes
Battery Life Approx. 20 hours
Power Supply 2 AA Batteries
Auto shut off Yes (after 15 mins/off)
Low Battery Indicator Yes
Replaceable Test Leads Yes
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Humidity Range 0 to 85%
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 7.1 x 3.5 x 1.9" (180 x 90 x 47mm)
Weight 8.2oz (500g)

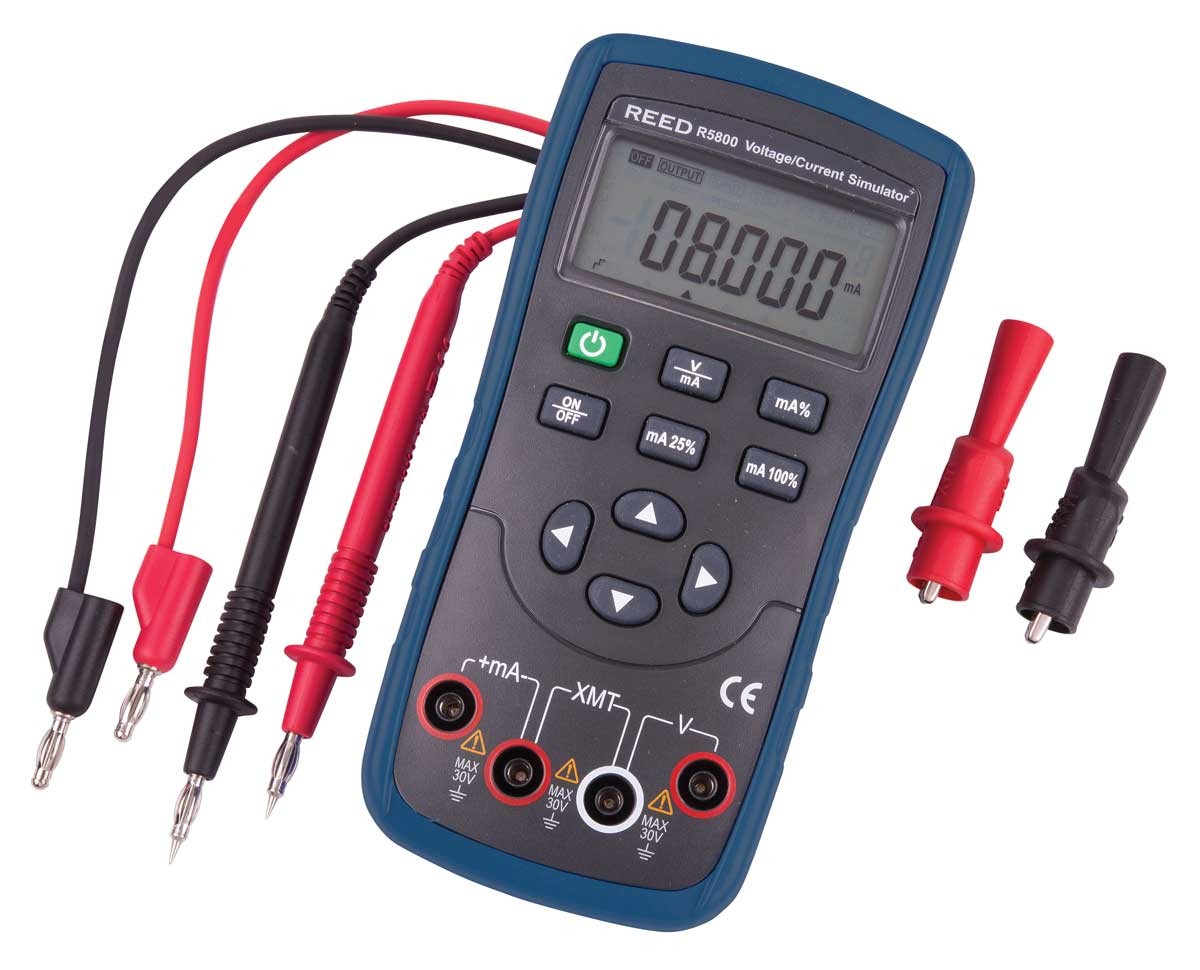

What's included with the REED R5800

  • Voltage/Current Simulator
  • Test leads
  • Alligator clips
  • Protective holster
  • Batteries
