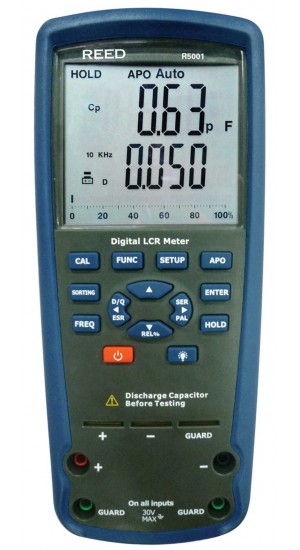

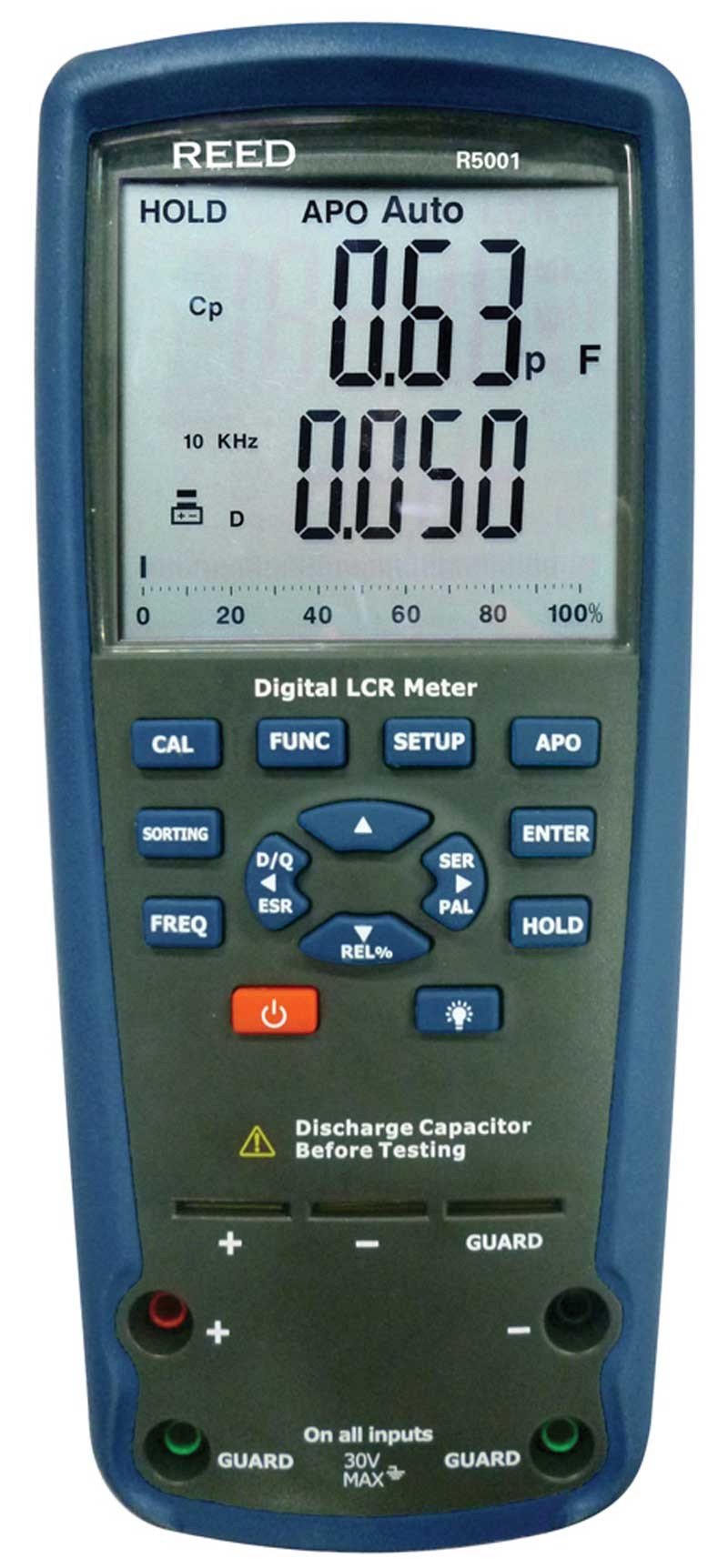

REED R5001 Passive Component LCR Meter

Model: R5001

REED R5001 Passive Component LCR Meter-

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


L, C, R measurements with test frequency up to 100kHz.

REED R5001 Offers

This LCR meter measures inductance, capacitance and resistance with secondary parameters such as dissipation factor (D), quality factor (Q), phase angle (Ø) and equivalent series/parallel resistance (ESR or Rp). The R5001 features a large easy-to-read LCD display with backlight, and data hold/relative functions.

Features

  • Measures inductance, capacitance and resistance
  • Autoranging for AC impedance and DE resistance measurement
  • Auto LCR smart check and measurement
  • Series/Parallel modes
  • Ls/Lp/Cp with D/Q/Ø/ESR parameters
  • Support DCR mode 200Ω to 200MΩ
  • High accuracy with 4 / 5 terminal Kelvin measurement
  • 10kHz testing frequency and up to 100kHz output frequency
  • Large backlit dual LCD display
  • Data hold and relative functions
  • Low battery indication with auto power off

REED R5001 Specifications

Inductance (F=1kHz)
Ranges 2000.0µH
20.000/200.0/2000.0mH
20.000/200.00/2000.0H
Resolution 0.1/1µH
0.01/0.1/1mH
0.01/1H
Accuracy ±(1.5% +15 dgt.)
Capacitance (F=1kHz)
Ranges 2000.0pF
20.000/200.00/2000.0nF
20.00/200.00/2000µF
Resolution 0.01/0.1/1pF
0.01/0.1/1nF
0.1µF
Accuracy ±(1.0% +10 dgt.)
Resistance (F=1kHz)
Ranges 20.000/200.00Ω
2.0000/20.000/200.00kΩ
2.0000/20.000/200.0MΩ
Resolution 0.01/0.1/1Ω
0.01/0.1/1kΩ
0.1MΩ
Accuracy ±(1.5% +5 dgt.)
General Specifications
Test Frequencies 100/120/1kHz
10kHz
100kHz
Display Dual LCD display
Relative and Data Hold Functions Yes
Backlit Display Yes
Kickstand Yes
Auto Power Off Yes (after 5 minutes, off)
Power Supply 6 AA Batteries
Low Battery Indicator Yes
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 8.6 x 3.7 x 2.4" (220 x 96 x 60mm)
Weight 0.8lb (360g)

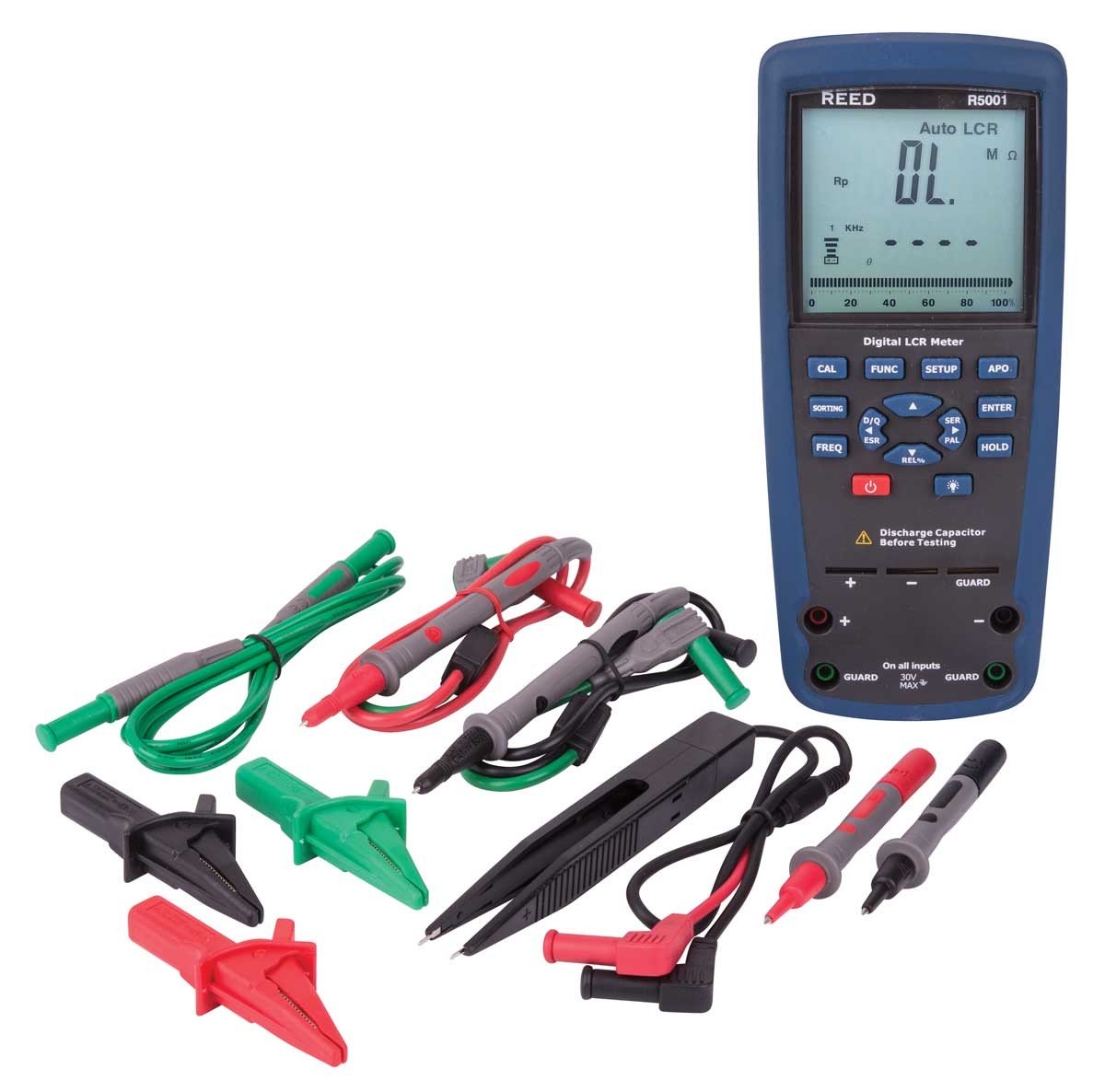

What's included with the REED R5001

  • LCR Meter
  • Test Leads and Probes
  • Tweezers
  • Alligator Clips
  • Batteries
