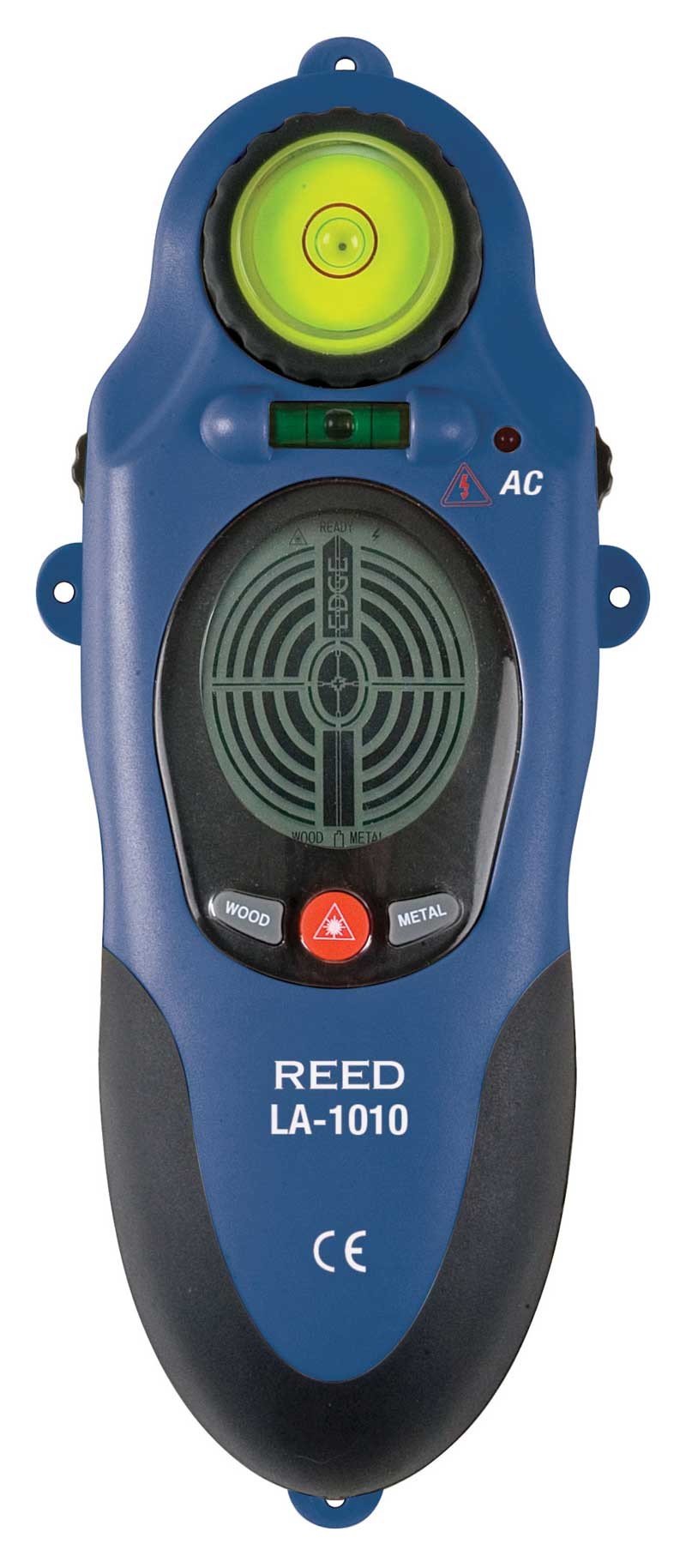

REED LA-1010 Stud/Metal/AC Voltage Detector

Model: LA-1010

REED LA-1010 Stud/Metal/AC Voltage Detector-

Downloads: datasheet manual
Ask an Expert Find This Product Near You


Find studs, metal and AC voltage with this laser line level. It features an LED display with continuous live wire detection and LCD sensing and mode display with target graphics.

Sorry! This product has been discontinued. Contact Us for more information.

REED LA-1010 Offers

Features

  • Stud/metal/AC voltage finder with laser line level
  • Select Normal Scan, detect up to 3/4" depth, or Deep Scan, detection up to 1-1/2" depth
  • 180° pivoting laser plane with level and plumb vials
  • Thumb dial adjustment feet for leveling the laser
  • 20' laser line projection onto work surface with 90° squaring
  • LED display with continuous live wire detection
  • LCD sensing and mode display with target graphics
  • Vertical and horizontal mounting holes
  • Easy key pad operation
  • Ergonomically designed for comfort and grip
  • Auto power off

REED LA-1010 Specifications

Laser Type 650nm Class IIIA diode
Laser Accuracy 1/2" at 20 ft.
Length of Laser Line up to 20 ft.
Power Supply Single 9V battery
Dimensions 180 x 67 x 38mm
Weight 180g

What's included with the REED LA-1010

  • REED LA-1010 Stud/Metal/AC Voltage Detector
  • Click on a category to view a selection of compatible accessories with the REED LA-1010 Stud/Metal/AC Voltage Detector.

    REED CA-05A Soft Carrying Case, 10 x 4.3 x 1.7"

    Model: CA-05A

    Features a main instrument compartment and a side pouch for accessories.
