REED K5090 Milli-Ohmmeter, 110V

Model: K5090

REED K5090 Milli-Ohmmeter-

Downloads:
datasheet
Ask an Expert Find This Product Near You


High accuracy, high resolution Milliohm Meter for field use.

REED K5090 Offers

Features

  • 4 terminal input for high accuracy of low resistance
  • Large LCD display
  • Zero adjustment dial
  • Built-in overload protection
  • 4-wire with 2 Kelvin clips included

REED K5090 Specifications

Ranges 200MΩ, 2000MΩ, 20Ω, 200Ω, 2000Ω
Accuracy 200MΩ: ±(0.75% rdg. + 4 dgt.)
2000MΩ, 20Ω, 200Ω, 2000Ω: ±(0.75% rdg. + 2 dgt.)
Resolution 0.1MΩ, 1MΩ, 10MΩ, 0.1Ω, 1Ω
Sampling Time 2x/per sec.
Range Selection Manual
Overrange Indicator Yes
Display LCD
Zero Adjustment Dial Yes
Power Supply 110V (50/60Hz)
Fuse Protection Yes
Overvoltage Category CAT. II 230V
Product Certifications CE
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 6.3 x 4.7 x 3.3" (160 x 120 x 85mm)
Weight 1.5lbs (680g)

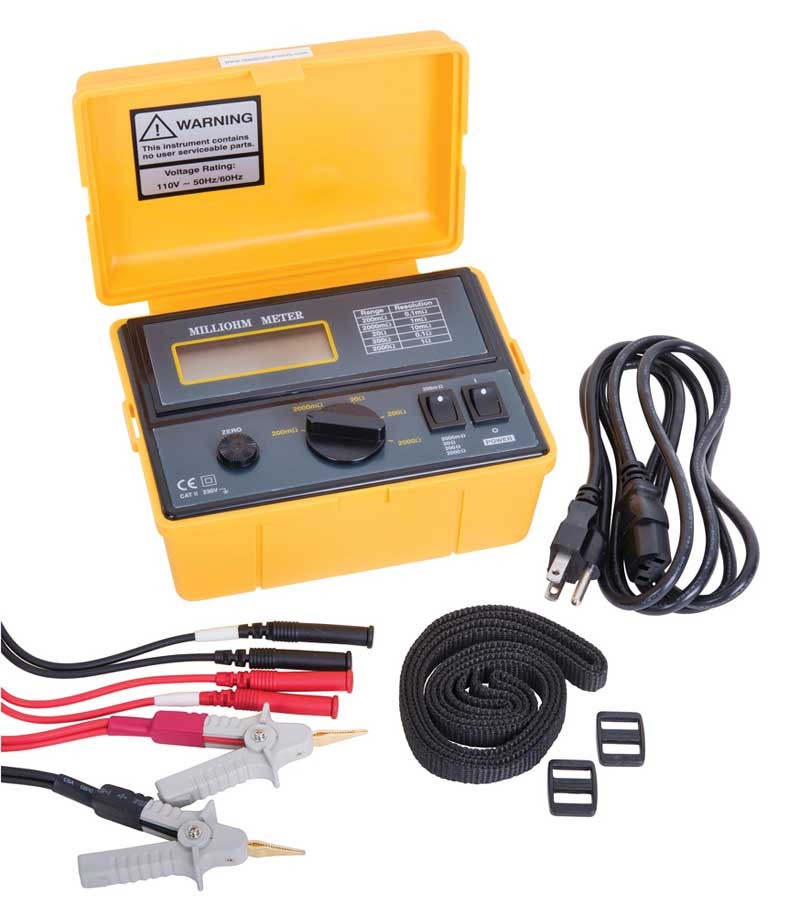

What's included with the REED K5090

  • Milli-Ohmmeter, 110V
  • 4-wire with 2 Kelvin Clips
  • Protective Case
  • Power Cord
  • Shoulder Strap
Calibration Lab

When you purchase a REED product it comes included with a one year warranty. We back our products.
