REED GS-5800 Ultrasonic Leak Detector

Model: GS-5800

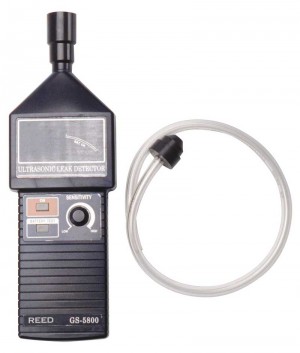

REED GS-5800 Ultrasonic Leak Detector-


Downloads: datasheet
Ask an Expert Find This Product Near You


Identifies and pinpoints leaks generated by pressure, vacuum, water, gas or air.

Sorry! This product has been discontinued.


The REED GS-5800 Ultrasonic Leak Detector has been discontinued, it has been replaced by the REED R9100 Ultrasonic Leak Detector

REED GS-5800 Offers

This Ultrasonic Leak Detector converts ultrasound signals produced by industrial machinery into easily recognizable audible sounds for a user to evaluate the condition of individual components. The GS-5800 features an earphone jack (earphones sold seperately) for use in loud environments.

Features

  • Locates leaks generated by pressure, vacuum, water, gas or air
  • LED bargraph display leakage level
  • Audible sound assists in pinpointing leak
  • Earphone jack for loud environments (earphones sold separately)
  • User adjustable sensitivity wheel
  • Battery check button
  • 20 to 100 kHz frequency response
  • Ultrasonic Transmitter sends a 40 kHz signal which, when detected by the meter, indicates the location and magnitude of a leak (GS-400, sold separately)

REED GS-5800 Specifications

Frequency Response 20 to 100 KHz
Sensitivity Adjustment Yes (wheel)
Display LED Bargraph
Alarm Audible (buzzer)
Earphone Jack Yes
Power Supply 9V battery
Low Battery Indicator Yes
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 10 x 2.8 x 1.1" (255 x 70 x 28mm)
Weight 5.3 oz (260g)

What's included with the REED GS-5800

  • Ultrasonic Leak Detector
  • Rubber Bottle Plug with Plastic Tubing
  • 1/2" PVC Pipe Assembly
  • Hard Carrying Case

Ideal Applications for the REED GS-5800

Verifying and checking for leaks in refrigeration and air conditioning systems, compressed air systems, engine seals, windshields and windows and doors.
