REED CC-421 Voltage/Current Calibrator

Model: CC-421

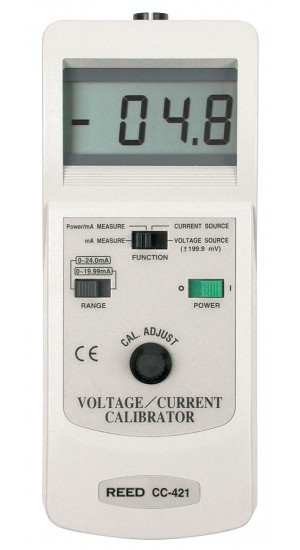

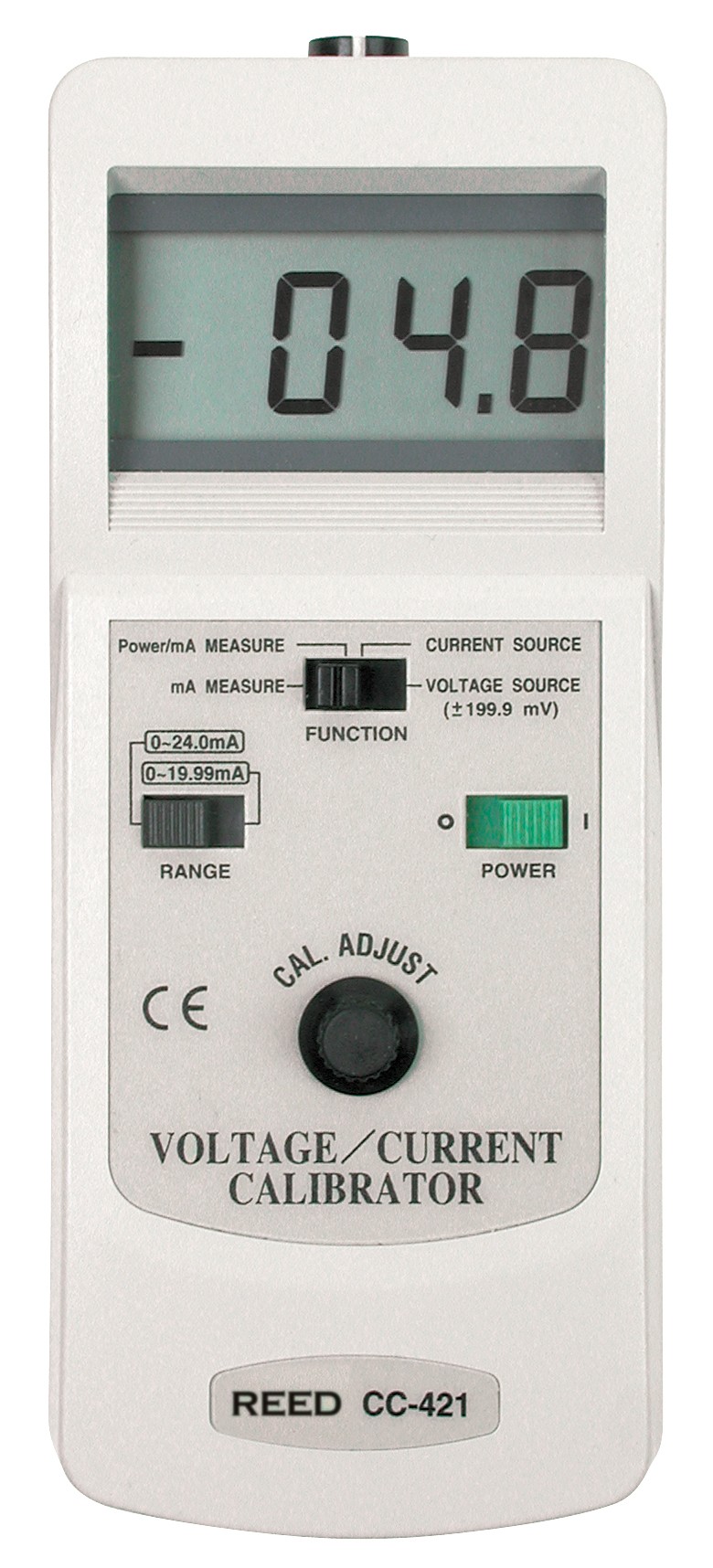

REED CC-421 Voltage/Current Calibrator

Downloads:
datasheet
Ask an Expert Find This Product Near You


This voltage/current calibrator drives loads up to 500Ω and features a 1/2" LCD display.

Sorry! This product has been discontinued.


The REED CC-421 Voltage/Current Calibrator has been discontinued, it has been replaced by the REED R8801 Voltage/Current Calibrator, 22mA/20V

REED CC-421 Offers

Features

  • Current calibrator drives loads up to 500Ω
  • 1/2" (13 mm) LCD display

REED CC-421 Specifications

Current Source 0 to 24 mA, 2 ranges
Current Measurement 0 to 24 mA, 2 ranges
Power & Current Measurement of 2-wire loop 0 to 24mA, 2 ranges
Voltage Source -199.9 mV to +199.9 mV DC
Sampling Time Approx. 0.4 second
Dimensions 185 x 78 x 38mm
Weight 265g

What's included with the REED CC-421

  • CC-421 Voltage/Current Calibrator
  • Test Leads
  • Battery

Ideal Applications for the REED CC-421

  • Research and development
  • Semiconductor, and process control
  • Verifying process scaled indicators
  • Calibrating signal conditioners
  • Calibrating voltage input signal conditioners
  • Testing valve positioners
  • Field testing loop powered isolators
Calibration Lab

When you purchase a REED product it comes included with a one year warranty. We back our products.
