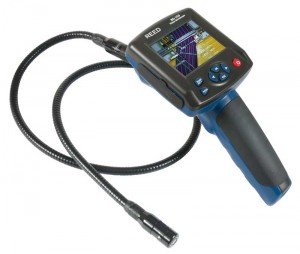

REED BS-150 Video Borescope Inspection Camera, Recordable

Model: BS-150

REED BS-150 Video Borescope Inspection Camera, Recordable-

Downloads: datasheet manual
Ask an Expert Find This Product Near You

17mm camera diameter and 3.2" color TFT LCD monitor. Saves high resolution images and record video.

Sorry! This product has been discontinued.

The REED BS-150 Video Borescope Inspection Camera, Recordable has been discontinued, it has been replaced by the REED R8500 Recordable 9mm Video Inspection Camera

REED BS-150 Offers

This high resolution video inspection camera features a 39" (1m) gooseneck cable with 17mm camera. The BS-150 is capable of saving images and recording video on internal memory or on an external memory card (sold seperately). The BS-150 includes a rechargeable lithium-ion battery and a camera mountable magnet, hook and mirror to assist with specific applications. An optional 9mm camera head can be ordered separately.


  • Camera and video functions save high resolution JPG images and record video
  • Comfortable pistol grip design
  • High resolution 3.2" color TFT LCD monitor
  • 17mm waterproof (IP67) camera head
  • Gooseneck cable retains configured shape
  • Cable expandable up to 30 ft (9.1m) with extensions (optional)
  • Four high visibility LED lights provide illumination in dimly lit environments
  • Internal memory with option to expand (SD card sold seperately)
  • TV Output
  • 180° mirror rotation function
  • Rechargeable lithium-ion battery
  • Low battery indicator and auto shut off

REED BS-150 Specifications

Camera Resolution 640 x 480
Camera Diameter 0.66" (17mm)
Viewing Distance 5.9 to 9.8" (15 to 25cm)
Depth of Field 10mm to infinity
Viewing Angle 0 to 180°
General Specifications
Display 3.2" Color TFT LCD
Display Resolution 320 x 240
Frames per Second (FPS) 30
Standard Gooseneck/Cable Length 39" (1m)
Rotate Display Yes (180°)
Playback Photo and Video
Memory Internal / SD Card (up to 8Gb)
Data Output USB / SD Card
LED Brightness Adjustment Yes (4 white LEDs)
Low Battery Indicator Yes
Power Supply Rechargeable li-ion battery
On-Screen Supported Languages English, Dutch, French, Spanish, Turkish
Product Certifications CE, IP67 (Camera Head)
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10 to 85%
Dimensions 9.5 x 3.9 x 6.3" (240 x 100 x 160 mm)
Weight 18.7oz (530g)

What's included with the REED BS-150

  • Video Borescope Inspection Camera, Recordable
  • 17mm Camera Head
  • Magnet, Hook and Mirror Attachments
  • Rechargeable Lithium-ion Battery
  • Power Supply
  • USB Cable
  • Video Output Cable
  • Hard Carrying Case

Ideal Applications for the REED BS-150

  • Building and home inspection
  • Pest control
  • HVAC/R and refrigeration
  • Visual inspections of aircraft engines
  • Steam turbines
  • Automotive and truck engines
  • Manufacturing of machined or cast parts
  • Inspection of critical interior surfaces for burrs, surface finish or complete through-holes

Click on a category to view a selection of compatible accessories with the REED BS-150 Video Borescope Inspection Camera, Recordable.

REED SD-4GB SD Memory Card, 4GB

Model: SD-4GB

For use with the REED SD Series Dataloggers and R2100 Thermal Imaging Camera.

REED BS-C6 6 ft Cable Extension

Model: BS-C6

Provides 6 ft extension for the R8100 and BS-150 Video Borescope Cameras.

REED BS-15-9C3 9mm Camera Head with 3 ft Cable

Model: BS-15-9C3

For use with the R8100 and BS-150 Video Borescope Cameras.

Calibration Lab
When you purchase a REED product it comes included with a one year warranty. We back our products.
