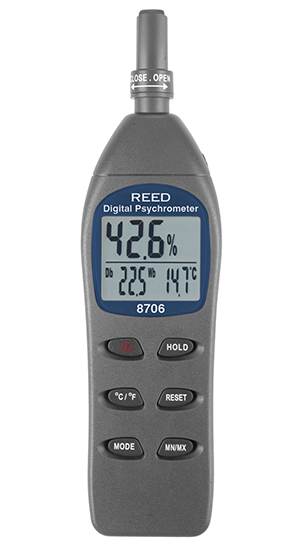

REED 8706 Digital Psychrometer / Thermo-Hygrometer, Wet Bulb, Dew Point, Temperature, Humidity

Model: 8706

REED 8706 Digital Psychrometer / Thermo-Hygrometer-

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Accurate and fast responding with optional probe for contact/differential temperature measurements.

REED 8706 Offers

This Digital Psychrometer provides simultaneous relative humidity and air temperature readings, as well as automatically calculating wet bulb and dew point temperatures without needing to consult charts.

Features

  • Simultaneous display of %RH, temperature and dew point or wet bulb
  • Optional external probe (87P6) for contact/differential temperature measurement
  • Max/Min/Avg readings
  • Fast response
  • Data Hold Function
  • User selectable °F/°C
  • Low battery indicator and auto shut-off

REED 8706 Specifications

Temperature
Measuring Range -4 to 158°F (-20 to 70°C)
Accuracy ±1.0°F (0.6°C)
Resolution 0.1°F/°C
Contact Temperature (Probe sold separately)
Measuring Range -4 to 122°F (-20 to 50°C)
Accuracy ±1.0°F (0.6°C)
Resolution 0.1°F/°C
Dew Point
Measuring Range -109 to 122°F (-78 to 50°C)
Accuracy ±3%
Resolution 0.1°F/°C
Wet Bulb
Measuring Range -69 to 122°F (-21 to 50°C)
Accuracy ±3%
Resolution 0.1°F/°C
Humidity
Measuring Range 0-100% RH
Accuracy ±3% RH
Resolution 0.1% RH
General Specifications
Display LCD
Data Hold Yes
Min Yes
Max Yes
Auto Shut-off Yes (5 mins/off)
Low Battery Indicator Yes
Power Supply 2 AAA Batteries
Product Certifications CE
Operating Temperature -4 to 158°F (-20 to 70°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-80%
Dimensions 7 x 1.9 x 1" (179 x 48 x 25mm)
Weight 3.3 oz (95g)

What's included with the REED 8706

  • Digital Psychrometer / Thermo-Hygrometer
  • Batteries

Ideal Applications for the REED 8706

  • Environmental studies
  • Food distribution
  • HVAC/R system installation
  • Greenhouses and industrial spaces
  • Saunas
  • Humidors
  • Museums
  • Lab Monitoring

Click on a category to view a selection of compatible accessories with the REED 8706 Digital Psychrometer / Thermo-Hygrometer, Wet Bulb, Dew Point, Temperature, Humidity.

REED CA-52A Soft Carrying Case, 8 x 2.8 x 1.7"

Model: CA-52A

Features a main instrument compartment and a side pouch for accessories.

REED 87P6 External Temperature Probe for the REED 8706

Model: 87P6

This external temperature probe calculates air temperature when attached to the REED 8706 digital psychrometer datalogger.

REED R9980 Humidity Calibration Kit (33% and 75%)

Model: R9980

Kit includes the R9933 (Humidity Calibration Standard, 33%) and R9975 (Humidity Calibration Standard, 75%). For use with REED R6001, SD-3007 and 8706.

REED R9975 Humidity Calibration Standard, 75%

Model: R9975

For use with REED R6001, SD-3007 and 8706.

REED R9933 Humidity Calibration Standard, 33%

Model: R9933

For use with REED R6001, SD-3007 and 8706.
