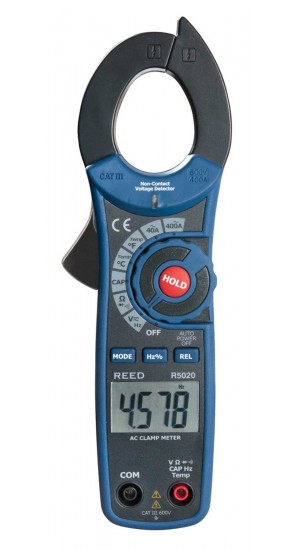

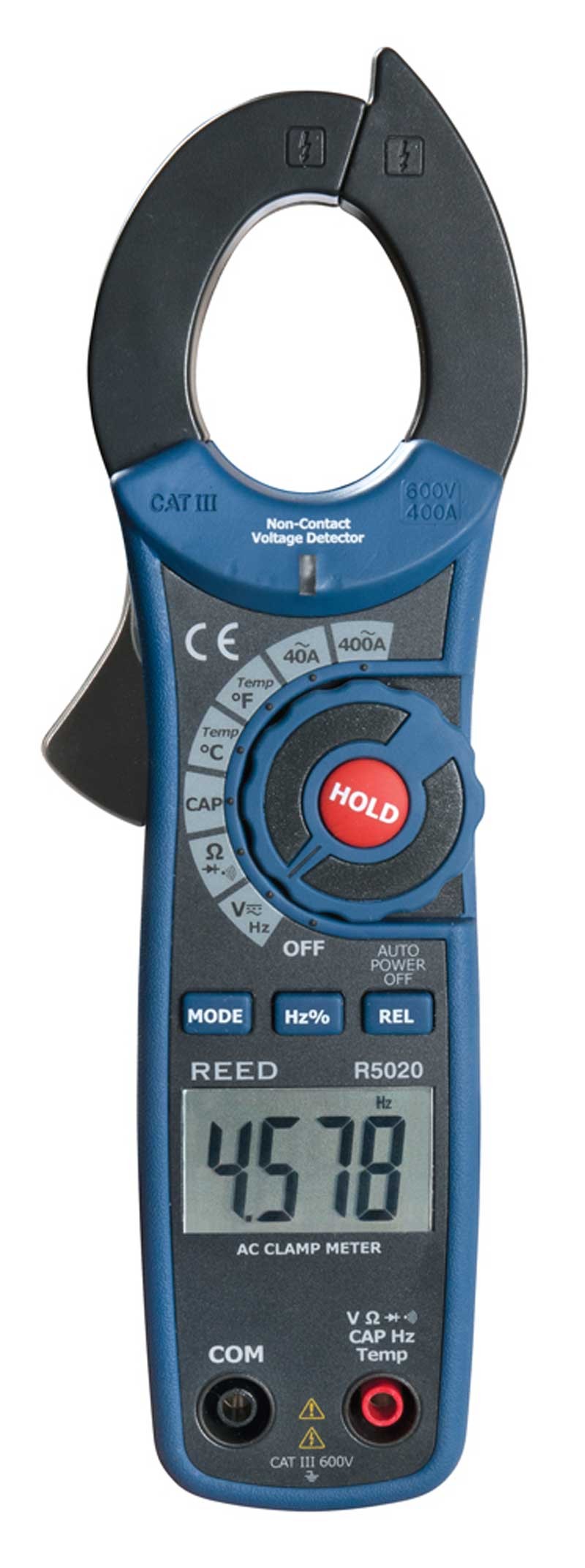

REED R5020 400A AC Clamp Meter with Temperature and Non-Contact Voltage Detector

Model: R5020

REED R5020 400A AC Clamp Meter with Temperature and Non-Contact Voltage Detector

Downloads:
datasheet manual
Ask an Expert Find This Product Near You


Compact AC clamp meter with built-in non-contact voltage detector and contact thermometer

REED R5020 Offers

This compact autoranging clamp meter is capable of measuring AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring double molded plastic housing, the R5020 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip.

Features

  • Measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature
  • 4000-count LCD display with low battery and overrange indicators
  • Built-in non-contact voltage detector with LED indicator
  • Display hold and relative mode
  • Diode test and continuity check functions
  • Durable double molded plastic housing
  • Cat. III 600V safety rating

REED R5020 Specifications

AC Current
Range 40, 400A
Accuracy AC: ±(2.5% rdg. + 8 dgt.)
Resolution 0.01, 0.1A
AC/DC Voltage
Range AC: 4, 40, 400, 600V
DC: 400mV, 4, 40, 400, 600V
Accuracy AC: ±(1.8% rdg. + 8 dgt.)
DC: ±(1.5% rdg. + 2 dgt.)
Resolution AC: 0.001, 0.01, 0.1, 1V
DC: 0.1mV, 0.001, 0.01, 0.1, 1V
Resistance
Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy ±(1.5% rdg. + 2 dgt.)
0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ
Capacitance
Range 40, 400nF, 4, 40, 100µF
Accuracy ±(3% rdg. + 5 dgt.)
Resolution 0.01, 0.1nF, 0.01, 0.1μF
Frequency
Range 10MHz
Accuracy ±(1.2% rdg. + 2 dgt.)
Resolution 0.01Hz
Temperature
Range -4 to 1400°F (-20 to 760°C)
Accuracy ±(3.0% rdg. + 9°F)
±(3.0% rdg. + 5°C)
Resolution 1°F, 1°C
General Specifications
Range Selection Autoranging / Manual
Display 4,000 count LCD display
Display Hold Yes
Relative Mode Yes
Diode Test Yes
Continuity Check Audible signal if resistance <150Ω
Duty Cycle Yes
Non-Contact Voltage Detector Yes
Autoshut off Yes (after 15 mins)
Power Supply 2 x AAA
Low Battery Indicator Yes
Jaw Opening 1.2" (30mm), up to 350 MCM
Overvoltage Category CAT. III 600V
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 7.9 x 2.6 x 1.5" (200 x 66 x 37 mm)
Weight 7.2oz (205g)

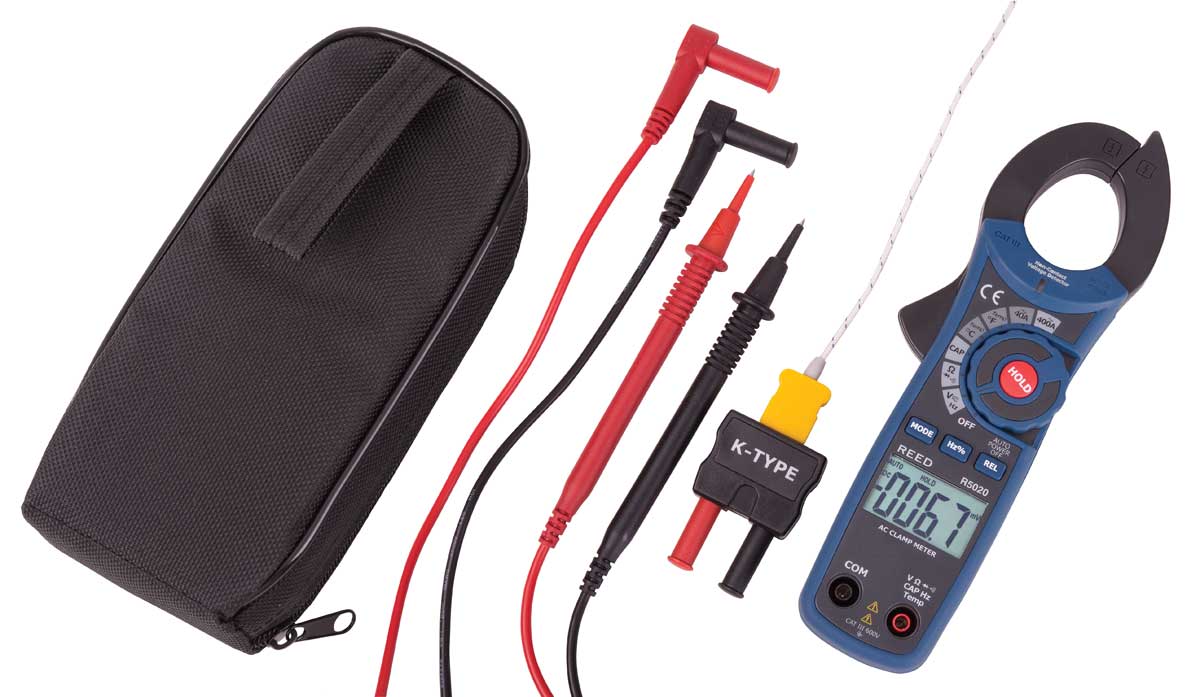

What's included with the REED R5020

  • AC Clamp Meter
  • Test Leads
  • Thermocouple Wire Probe
  • Thermocouple Adapter
  • Batteries
  • Soft Carrying Case

Ideal Applications for the REED R5020

Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems.

Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems.

Click on a category to view a selection of compatible accessories with the REED R5020 400A AC Clamp Meter with Temperature and Non-Contact Voltage Detector.

REED LS-109 Surface Thermocouple Probe, Type K, 32 to 752°F (0 to 400°C)

Model: LS-109

This surface thermocouple probe is designed for flat or convex surface temperature measurements. Exposed ribbon allows for direct contact with surface. The LS-109 is color coded according to ANSI thermocouple identification standards.

REED LS-181 Male Thermocouple Connector, Type K

Model: LS-181

This type-k male thermocouple connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-181 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.

REED LS-104 Right Angle Thermocouple Surface Probe, Type K, 32 to 752°F (0 to 400°C)

Model: LS-104

This unique right angle surface probe design allows for temperature measurement of hard to reach areas. The LS-104 is great to monitor temperatures inside pipes and flat surfaces while keeping hands away from heated area.

REED LS-103 Air/Gas Thermocouple Probe, Type K, 32 to 1112°F (0 to 600°C)

Model: LS-103

Specially designed to measure air or gases in heating and cooling units, ovens and engine exhausts. The is color coded according to ANSI thermocouple identification standards.

REED LS-139 Spring Loaded Surface Thermocouple Probe, Type K, -58 to 1432°F (-50 to 800°C)

Model: LS-139

This spring loaded surface thermocouple probe is designed for flat or convex surface temperature measurements. The LS-139 is color coded according to ANSI thermocouple identification standards.

REED LS-182 Female Thermocouple Connector, Type K

Model: LS-182

This type-k female thermocouple connector is constructed of glass-filled nylon for increased strength and wear resistance. The LS-182 is rated up 425°F (250°C) and is color coded according to ANSI thermocouple identification standards.

REED TP-01 Beaded Thermocouple Wire Probe, Type K, -40 to 482°F (-40 to 250°C)

Model: TP-01

This Type-K beaded thermocouple wire probe is recommended for basic general purpose temperature applications. The TP-01 is color coded according to ANSI thermocouple identification standards.

REED LS-107 Immersion Thermocouple Probe, Type K, -58 to 1292°F (-50 to 700°C)

Model: LS-107

This immersion probe is recommended for immersion applications and is excellent for checking the temperature of water, oils and non-corrosive fluids and gels. The LS-107 is color coded according to ANSI thermocouple identification standards.

REED R5400 Line Splitter

Model: R5400

Provides safe measurements of current without the need to separate conductors.

REED CA-52A Soft Carrying Case, 8 x 2.8 x 1.7"

Model: CA-52A

Features a main instrument compartment and a side pouch for accessories.

REED C-820 Soft Carrying Case, 8.5 x 5 x 1.75"

Model: C-820

Basic soft carrying case for small to medium sized instruments.

REED TL-88-1 Safety Test Lead Set, Double Insulated

Model: TL-88-1

Right angle and straight end flexible leads with shrouded banana plugs.

REED FC-300 Fused Test Lead Set

Model: FC-300

Set of two test leads with built-in fuses for added protection.

REED AD-1 Thermocouple Adapter

Model: AD-1

This adapter converts any Type-K thermocouple temperature probe with a mini-connector to dual shrouded banana plug inputs.
