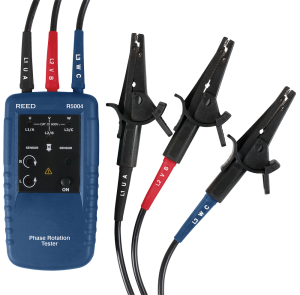

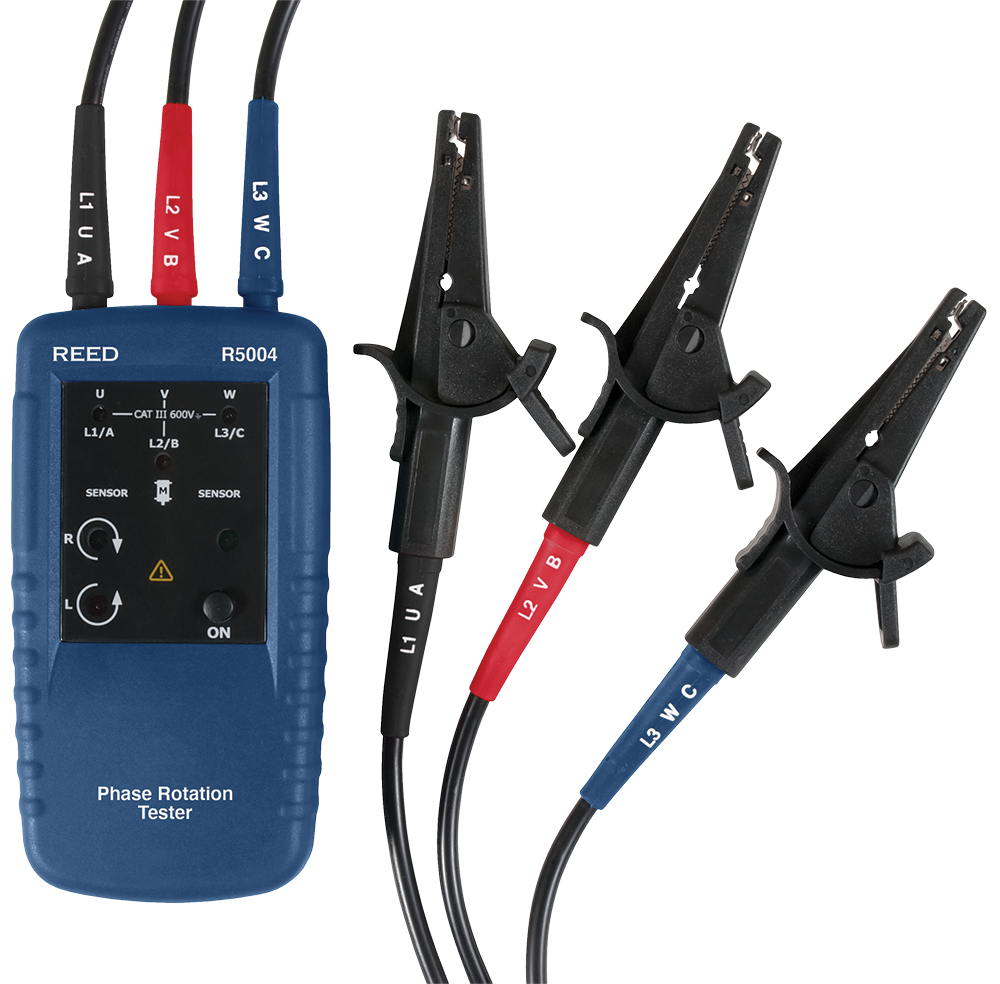

REED R5004 Motor Rotation / 3-Phase Tester

Model: R5004 | UPC: 800837001214

REED R5004 Motor Rotation / 3-Phase Tester

Model: R5004 | UPC: 800837001214

LEDs display motor rotation and phase status.

REED R5004 Offers

This motor rotation and 3-phase tester is capable of identifying phase orientation (clockwise or counter-clockwise). The R5004 features a rugged double molded plastic housing and has the ability to identify which of the 3-phases is live.

Features

  • Tests phase orientation of 3-phase power sources
  • Indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
  • LEDs display motor rotation and phase status
  • Easy to open alligator clips with wide jaws
  • Durable double molded plastic housing
  • Cat. III 600V safety rating

REED R5004 Specifications

Voltage Range 40 to 600V
Frequency 2 to 400Hz
General Specifications
Power Supply 9V Battery
Battery Life Approx. 1 year (regular usage)
Overvoltage Category CAT. III 600V, CAT. IV 300V
Product Certifications CE
Operating Temperature 0 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity Range 10 to 80%
Dimensions 5.1 x 2.7 x 1.3" (130 x 68 x 32 mm)
Weight 4.5oz (130g)

What's included with the REED R5004

  • Motor and 3-Phase Rotation Tester
  • 3 Color Coded Cables
  • 3 Alligator Clips
  • Battery
  • Soft Carrying Case
